Product Details:
|
| Product Name: | 1.5m/s Speed Panoramic Elevator Observation Elevator Sightseeing Lift For Hotel, Office Building | Speed: | 1.0m/s 1.5m/s 1.75m/s 2.0m/s 2.5m/s |
|---|---|---|---|
| Load Capacity: | 450kg 630kg 800kg 1000kg 1250kg 1500kg 1600kg 2000kg | Warranty: | 18 Month After Delivery |
| Control: | Traction VVVF | Traction Machine: | Gearless Traction Machine Geared Machine |
| Flooring: | Marble Or PVC, PVC | Handrail: | Stainless Steel Tube, Stainless Steel Hairline Board, Stainless Steel/Logs/As Customer Request |
| Machine Room: | Above The Shaft Or MRL | ||
| Highlight: | High Building Panoramic Glass Lift,450kg panoramic glass lift,630kg lift panoramic |
||

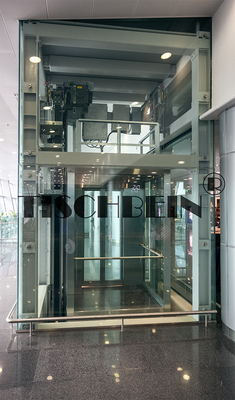

1.75m/S Speed Traction Panoramic Elevator Sightseeing Lift Observation Elevator Glass Elevator For High Building
1. Panoramic elevator:
The fresh new panoramic elevator is of the elegant and beautiful outline model, the extraordinarily distinguished grade. It helps you to appreciate the outstanding charm and luxurious manner of modern architectures. It complies with the energy-saving VVVF variable frequency drive and quietly bears the fully deducts the profound knowledge of TISCHBEIN elevator to modern urban life by the steady and comfortable travel experience, the unique style of popular outlook, the humane interface setting.
2. Main parameters:
Machine room: MR/MRL Panoramic Elevator
Load capacity: 450kg, 630kg, 800kg, 1000kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg
Speed: 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4m/s
Travel height: 3.2m - 150m
Drive type: VVVF
Control system: TISCHBEIN system Monarch/Step Elevator Control System
Traction machine: Gearless Motor gearless motor
Cabin size Based on shaft size and EN code
3. WARRANTY
Warranty: 1-2 years
4. Installation & After Sales
INSTALLATION
1.TISCHBEIN factory will provide an installation manual for your technical staff.
2. TISCHBEIN factory can provide online technique support for accurate commissioning.
3.For special requirements, our factory can send engineers to the site to help guide the installation.
4.For our agents, TISCHBEIN welcome you to send technicians to our factory for inspection.
AFTER-SALES
1.During warranty period if any parts get damaged due to quality issue within 18 months after B/L date, we will send new replacement once confirmed.
2.After warranty period if any parts get damaged we offer you at factory price.
If there are quality problems, please contact online customer service, customer satisfaction is what we want to achieve.
Please trust: TISCHBEIN ELEVATOR, TIED TO SAFETY. And welcome to contact us!
