Product Details:
|
| Inclination: | 0°~ 6° 10° 12° | Installation: | Indoors |
|---|---|---|---|
| Speed: | 0.5m/s | Max. Vertical Rise: | 9m |
| Start Mode: | VVVF | Step Width: | 800 1000mm |
| Capacity: | 6750 9000 Pers Per Hour | Outer Cladding: | Hairline Stainless Steel Mirror Stainless Steel |
| Usage: | Supermarket Shopping Mall Shopping Center Railway Station | Standard: | EN115 |
| Highlight: | Stainless Steel Outdoor Moving Walkway,Outdoor Waterproofing Protection Moving Walkway,Auto Start Moving Walkway |
||

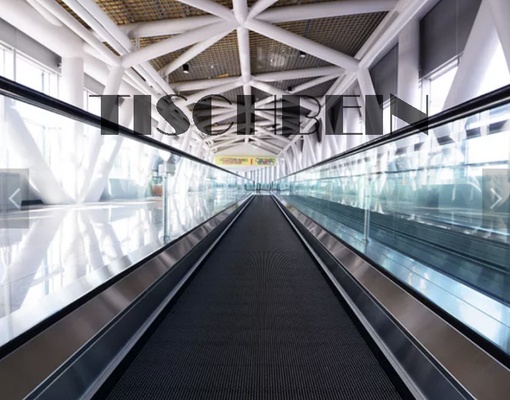

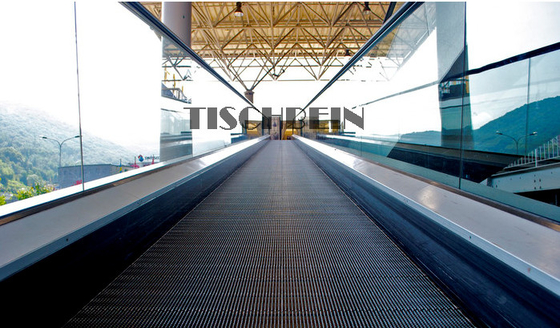

0° -12° Indoor Outdoor 800mm 1000mm Pallet Width Moving Walk Hot-dip Galvanized Truss For Railway Station Subway etc
Supermarket Shopping Mall Shopping Center Railway Station
1. TISCHBEIN series escalator is applicable for hotel, shopping mall, supermarket, airport, railway station, etc. According to your demand, we can provide with multi solution of 30°/35°, meanwhile, provide with diversified decoration style matching your building.
2. Main Parameters:
3. Standard Features
| No | Feature | No | Feature | |||||||||||||||||||||||||||||||||||||||||||
| 1 | Two direction moving | 12 | Automatic Lubricator | |||||||||||||||||||||||||||||||||||||||||||
| 2 | Inspection operation | 13 | Static electricity protection | |||||||||||||||||||||||||||||||||||||||||||
| 3 | Lack of phase, error phase protection device | 14 | Unintentional reversal protection | |||||||||||||||||||||||||||||||||||||||||||
| 4 | Motor over-load protection device | 15 | Security line | |||||||||||||||||||||||||||||||||||||||||||
| 5 | Electric appliance loop protection device | 16 | Emergency stop button | |||||||||||||||||||||||||||||||||||||||||||
| 6 | Handrail entry safety protection | 17 | Skirting protection device | |||||||||||||||||||||||||||||||||||||||||||
| 7 | Comb plate safety device | 18 | Brake protection device | |||||||||||||||||||||||||||||||||||||||||||
| 8 | Step sagging protection device | 19 | Safety inspection switch | |||||||||||||||||||||||||||||||||||||||||||
| 9 | Broken deive-chain safety device | 20 | Step illumination | |||||||||||||||||||||||||||||||||||||||||||
| 10 | Broken step chain protection device | 21 | Alarm bell starting device | |||||||||||||||||||||||||||||||||||||||||||
| 11 | Over-speed protection device | 22 | Control device for handrail breakage | |||||||||||||||||||||||||||||||||||||||||||
4. Questions:
1). Are the elevator steel ropes durable enough?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2). Is it dangerous in sudden power failure during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3). Will the passengers be hurt once it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti-clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4). How does the elevator be operated?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5). Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6). Do the elevator and escalator approved with any cerifications?
Yes, we do with ISO9001 / CE Certificates.
TISCHBEIN ELEVATOR, TIED TO SAFETY. WELCOME TO CONTACT US!
